Vertical T Shirt Automatic Steam Press Machine With Touch Screen PLC 50HZ

Certification
China shanghai jiejia garment machinery co .,ltd certification
China shanghai jiejia garment machinery co .,ltd certification
I'm Online Chat Now

Vertical T Shirt Automatic Steam Press Machine With Touch Screen PLC 50HZ

Vertical T Shirt Automatic Steam Press Machine With Touch Screen PLC 50HZ
Vertical T Shirt Automatic Steam Press Machine With Touch Screen PLC 50HZ Vertical T Shirt Automatic Steam Press Machine With Touch Screen PLC 50HZ Vertical T Shirt Automatic Steam Press Machine With Touch Screen PLC 50HZ Vertical T Shirt Automatic Steam Press Machine With Touch Screen PLC 50HZ Vertical T Shirt Automatic Steam Press Machine With Touch Screen PLC 50HZ Vertical T Shirt Automatic Steam Press Machine With Touch Screen PLC 50HZ Vertical T Shirt Automatic Steam Press Machine With Touch Screen PLC 50HZ

Large Image :  Vertical T Shirt Automatic Steam Press Machine With Touch Screen PLC 50HZ

Product Details:
Place of Origin: Shanghai China
Brand Name: JIEJIABAIGU
Certification: ISO9001:2015
Model Number: CZDJ
Payment & Shipping Terms:
Minimum Order Quantity: 2 SETS
Price: price is negotiable
Packaging Details: wooden case
Delivery Time: 15-25 works day
Supply Ability: 20 units per month

Vertical T Shirt Automatic Steam Press Machine With Touch Screen PLC 50HZ

Description
Control: Touch-sreen PLC Press: Vertical
Heat: Steam Drive: Compressed Air / Cylinder
Electric Power: 220V/1ph/50HZ Certification: ISO9001:2015
Close: Scissors (top + Bottom) Vacuum: Supper Strong With Dual Pump
Clothe: T-shirt, Polo Shirt, Sweater
High Light:

PLC Vertical Suit Press Machine

,

Touch Screen Automatic Ironing Machine

,

50HZ T Shirt Press Machine

CYAJ Jacket blazer suit press machine equipment vertical lapel press Shanghai Jiejiabaigu





Model CZDJ-8595 CZDJ-14580
Suitable garment Polo shirt, T-shirt Automatic
Heating model of upper and lower mould Steam Steam
Driving mode of the mould Upper mould by cylinder
Lower mould by cylinder
Upper mould by cylinder
Lower mould by cylinder
Steam working pressure (Mpa ) 0.4Mpa to 0.6Mpa 0.4Mpa to 0.Mpa
Steam consumption 30kg 30kg
Dimension 1250mm*1500mm*2150mm 1850mm*1500mm*2150mm



I. Factory

Factory since: 1998

Full range of garment ironing equipment

Reliable equipment quality

Delivery in time

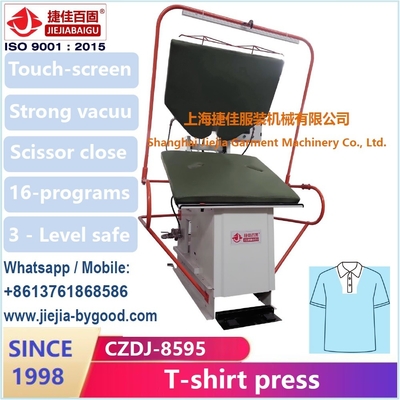

II. Automatic T-shirt press machine

Model CZDJ-8595
Control Automatic touch-screen PLC
Total pressure 1600kg
Steam 0.4-0.6MPa (30kg/h) 1/2”
Compress air 0.4-0.6MPa (30L/min) 8mm
Electric power 220V/1ph/50HZ
Vacuum dual vacumm pump (build-in)
Drained water 1/2”
Dimension 1250x1500x1210mm
Net weight 650kg



Vertical T Shirt Automatic Steam Press Machine With Touch Screen PLC 50HZ 0



III. Feature

型特点


1. 触摸屏 控制 PLC, 功能强大

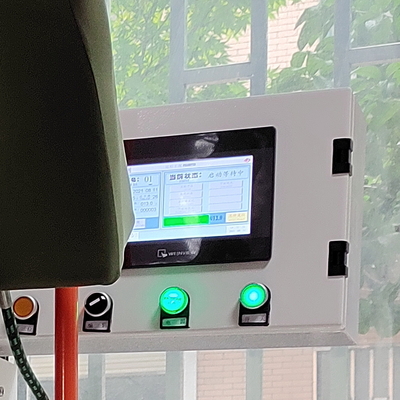

Touch screen PLC controller
2. 可 存储 16 组 参数 配方 程序
With 16 data formula programs
3. 上下模具剪刀式合模,开口大,方便操作
Top & bottom buck scissors type close. It has huge
space for worker to operate
4. 设有肩部支撑杆,方便摆放提高效率
Shoulder support stick to increase efficiency
5. 上模具采用日式铜阀喷汽,汽量大
Japan type bronze steam valve supply strong steam
6. 内置 下模具 双 抽风,抽风量超级大
bottom with dual super strong build in suction unit
7. 压 烫 之后, 提高 衣物 的 平整 度 光泽度 和 手感
It increases much planeness, luster & touch feeling
8. 三重安全防护:开机,运行检测,急停
Triple safety protect method
Start check, run monitor, emergency stop





Vertical T Shirt Automatic Steam Press Machine With Touch Screen PLC 50HZ 1



Vertical T Shirt Automatic Steam Press Machine With Touch Screen PLC 50HZ 2

Vertical T Shirt Automatic Steam Press Machine With Touch Screen PLC 50HZ 3

Vertical T Shirt Automatic Steam Press Machine With Touch Screen PLC 50HZ 4



Vertical T Shirt Automatic Steam Press Machine With Touch Screen PLC 50HZ 5Vertical T Shirt Automatic Steam Press Machine With Touch Screen PLC 50HZ 6



IV. Full final suit press machine



NO. Model Description of machine Dimension: L x W x H mm
1 CYAJ-107 Left front press 1200x1200x1650
2 CYAJ-108 Right front press 1200x1200x1650
3 CYAJ-122 Left back press 1200x1200x1650
4 CYAJ-123 Right back press 1200x1200x1650
5 CYAJ-126 Double lapel 900x1200x1650
6 CYEJ-116.117 Double shoulder 1000x1000x2150
7 CYGJ-547 Collar master 1100x1100x2150
8 CZBJ-104 Sleeve front 900x1200x1300
9 CZBJ-105 Sleeve elbow 900x1200x1300
10 CZBJ-114 Sleeve arm-hole 900x1200x1300
11 CABJ-114-14 Sleeve blocking 900x1200x1300

Vertical T Shirt Automatic Steam Press Machine With Touch Screen PLC 50HZ 7

Shanghai Jiejia Garment Machinery Co., Ltd. was registered in 1998. Over 20 years we developed 5 series of main product:



  1. Fabric shrink / inspect / fuse machinery
  2. Suits pressing machinery
  3. Pant machinery
  4. Shirt machinery
  5. Jeans machinery
  6. Knitting machinery



Any customer could find his satisfied machinery and acceptable price for economical class or high class.



Jiejia could supply with full solution for all kinds of garment ironing purpose like: suits, pant, shirt, T-shirt, sweater, coat and so on.



V. Q&A

1. Do you have another type of machine ?
Yes. we have 3 different levels of machine for your reference

2. Do you have any customer factory to see?
Yes. please contect with us to find close one for you.

3. Do you have machine video?

Yes. please contact with us.

4. Are you factory?

Yes. We have manufactured for over 20 years.





=========================================

Auto press machine for suit jacket uniform interlining steam ironing equipment with vacuum suction



Factory:

Vertical T Shirt Automatic Steam Press Machine With Touch Screen PLC 50HZ 8  Vertical T Shirt Automatic Steam Press Machine With Touch Screen PLC 50HZ 9



Vertical T Shirt Automatic Steam Press Machine With Touch Screen PLC 50HZ 10  Vertical T Shirt Automatic Steam Press Machine With Touch Screen PLC 50HZ 11



Vertical T Shirt Automatic Steam Press Machine With Touch Screen PLC 50HZ 12  Vertical T Shirt Automatic Steam Press Machine With Touch Screen PLC 50HZ 13
