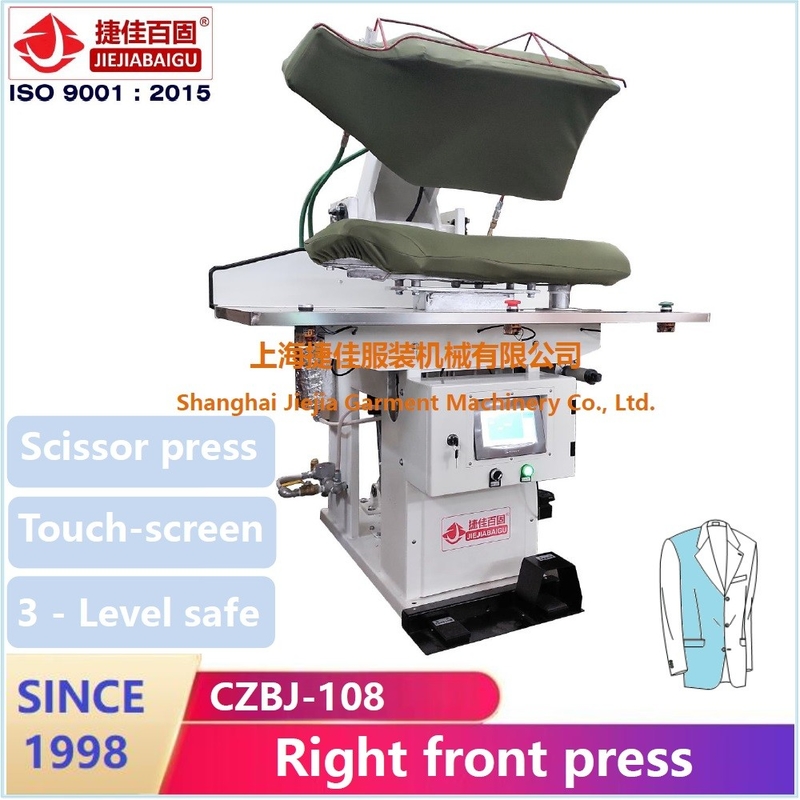

Automatic Touch Screen Jacket Commercial Ironing Press Machine With Steam Chamber

Certification
China shanghai jiejia garment machinery co .,ltd certification
China shanghai jiejia garment machinery co .,ltd certification
I'm Online Chat Now

Automatic Touch Screen Jacket Commercial Ironing Press Machine With Steam Chamber

Automatic Touch Screen Jacket Commercial Ironing Press Machine With Steam Chamber
Automatic Touch Screen Jacket Commercial Ironing Press Machine With Steam Chamber Automatic Touch Screen Jacket Commercial Ironing Press Machine With Steam Chamber Automatic Touch Screen Jacket Commercial Ironing Press Machine With Steam Chamber Automatic Touch Screen Jacket Commercial Ironing Press Machine With Steam Chamber Automatic Touch Screen Jacket Commercial Ironing Press Machine With Steam Chamber

Large Image :  Automatic Touch Screen Jacket Commercial Ironing Press Machine With Steam Chamber

Product Details:
Place of Origin: Shanghai China
Brand Name: JIEJIABAIGU
Certification: ISO9001:2015
Model Number: CZBJ
Payment & Shipping Terms:
Minimum Order Quantity: 2 SETS
Price: price is negotiable
Packaging Details: wooden case
Delivery Time: 7-15 works day
Supply Ability: 40 units per month

Automatic Touch Screen Jacket Commercial Ironing Press Machine With Steam Chamber

Description
Control: 7" Touch-sreen PLC Or LED Controller Press: Scissors Close And Press
Heat: Steam Chamber & Stainless Steel Pipe Drive: Cylinder
Buck: Left Front Steam Spray: Italy Made Valve
Suction: Vacuum Pipe System Suitable For: Man Lady Suit Jacket Blazer Dress
Buck Material: Aluminium Fix Table: Satinless Steel
High Light:

Touch Screen Jacket Ironing Press Machine

,

Commercial Steam Press With Chamber

,

Automatic Garment Pressing Machine

Auto-PLC laundry press machine commercial laundry press machine Laundry press



1. Factory information

The company established a production base in Shanghai in 1998, with more than 22 years of clothing ironing equipment design, research and development, production experience

Customers are all in China, in Southeast Asia, Europe, America, Africa and other countries

Our company has passed is090001-2015 quality system certification.

There are 5 main departments, such as technology development department, product design department, product sales department, accounting department and production management department.

Our machine has famous spare part like Mitsubishi, Omron, SCHNEIDER, FOTEK and so on.

The main products include: 1 - suit ironing machine 2 - shirt ironing machine 3 - trousers ironing machine.





2. Machine perameter:

Model CZBJ-107L (lady left front)  CZBJ-108 (Lady right front)
Control Automatic touch-screen PLC / LED PLC
Total pressure 250kg
Steam 0.4-0.6MPa (18kg/h) 1/2”
Compress air 0.4-0.6MPa (15L/min) 8mm
Electric power 220V/1ph/50HZ / 380V/3ph/50hz
Vacuum 1.5kw / 0.75 build-in vacuum unit
Drained water 1/2”
press type dry press
Stem spray Italy made valve
Dimension 1200x1200x1300mm
Net weight 370kg



3. Feature detail

3.1 Scissors-type close & press

pressure 300kg

3.2 Metal buck is suitable for garment

(customizable)

3.3 Automatic LED controller (8 programs)

(set: close, press, steam, vacuum)
optional touch-screen PLC (16 programs)

3.4 (3) level safety protection device

3.5 Input & output signal

(easy to check faulty)

3,6 180mm length shock absorber (long life)

Optional air shock absorber system

3.7 Stainless steel board

Optional painted metal board

3.8 Steam heating system (top + bottom)

3.9 Top buck steam spray

(steam chamber supply much volume)

3.10 Bottom buck has vacuum

3.11 Famous pneumatic parts

3.12 suitable for: suit / jacket or uniform

3.13 ironing part:  left fornt / right front

3.14 optional buck with electric heating







4. Machine's application

4.1 ) High class wool jacket blazer front suit final press

4.2 ) Dark color light fabric jacket blazer font suit final press

4.3 ) classical jacket blazer font suit final press

4.4 ) formal jacket blazer font suit final press



5. Q & ANSWER



1.Q How could I get more information
A Please contact with our E-mail or local agent.
2.Q Do you have another type of machine?
A Yes. We have 3 different levels of machine for your reference
3.Q Do you have any customer factory to see?
A Yes. Please contact with us to find close one for you.
4.Q Do you have machine video?
A Yes. Please contact with us.
5.Q Are you factory?
A Yes. We started to manufacture on 1995
6.Q Our garment is export to different countries. Do you have suitable buck?
A Yes. We have different types of buck series for your reference.
7.Q Our factory production is not much, could I have some suggestion?
A Yes. We have double buck machine for small production factory.
8.Q Do you have English manual and installation instruction?
A Yes. We have all in English
9.Q Could you supply OEM product?
A Yes. We are supplying OEM machine for Italy, English, American customer and so on
10.Q Could you supply with demo machine?
A We could supply with demo machine with some cost.





6. Machine's picture

Automatic Touch Screen Jacket Commercial Ironing Press Machine With Steam Chamber 0



Automatic Touch Screen Jacket Commercial Ironing Press Machine With Steam Chamber 1

Automatic Touch Screen Jacket Commercial Ironing Press Machine With Steam Chamber 2

Automatic Touch Screen Jacket Commercial Ironing Press Machine With Steam Chamber 3Automatic Touch Screen Jacket Commercial Ironing Press Machine With Steam Chamber 4







factory photo

Automatic Touch Screen Jacket Commercial Ironing Press Machine With Steam Chamber 5  Automatic Touch Screen Jacket Commercial Ironing Press Machine With Steam Chamber 6



Automatic Touch Screen Jacket Commercial Ironing Press Machine With Steam Chamber 7  Automatic Touch Screen Jacket Commercial Ironing Press Machine With Steam Chamber 8



Automatic Touch Screen Jacket Commercial Ironing Press Machine With Steam Chamber 9  Automatic Touch Screen Jacket Commercial Ironing Press Machine With Steam Chamber 10
