Product Details:
|
| Control: | LED PLC / Touch-sreen PLC | Press: | Scissors Close |
|---|---|---|---|
| Heat: | Steam Chamber & Pipe | Drive: | Compressed Air Cylinder |
| Buck: | Back Area | Steam Spray: | Italy Made Electric Valve |
| Suction: | Vacuum Pipe | Suitable For: | Jacke Suits Uniform |
| Pressure: | 100-300kg | Part: | Left Back |
| Buck Material: | Aluminium | ||
| Highlight: | Ironing Automatic Cloth Press Machine,Blazer Commercial Steam Press,220V Garment Pressing Machine |
||

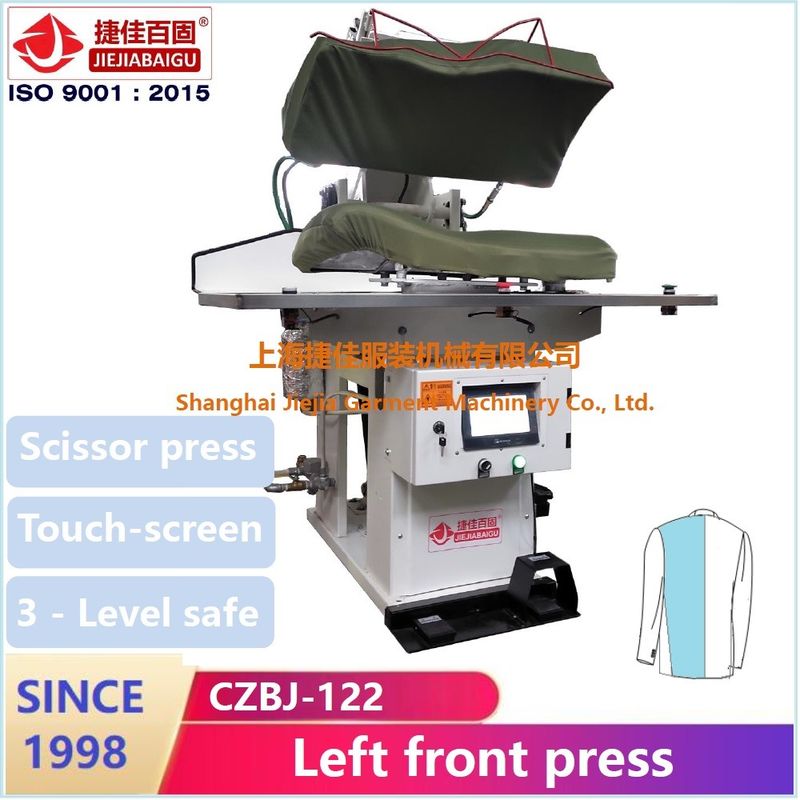

220V Blazer Suit Ironing Commercial suit ironing Machine with steam chamber vacuum pump
I. Factory information
The company established a production base in Shanghai in 1998, with more than 22 years of clothing ironing equipment design, research and development, production experience
Our company has passed is090001-2015 quality system certification.
There are 5 main departments, such as technology development department, product design department, product sales department, accounting department and production management department.
II. Automatic CZBJ series press machine feature
| Model | CZBJ-122 |
| Control | Automatic LED PLC (8 programs) |
| Optional: touch-screen PLC (16 programs) | |
| Buck name | left back iron |
| Buck material | aluminium |
| Total pressure | 100-300kg (adjustable) |
| Heat method | Steam chamber |
| Optional | |
| Steam spray | Top buck |
| Vacuum | Bottom buck |
| Standard: 2” vacuum pipe system | |
| Optional 1: 1.5kw 220V build-in pump | |
| Optional 2: 0.75kw | |
| Steam | 0.4-0.6MPa (18kg/h) / (15kg/h) |
| Standard: 1/2” pipe | |
| Optional: build-in steam | |
| Spray by Italy made steam | |
| Compress air | 0.4-0.6MPa (15L/min) |
| Standard: 8mm pipe | |
| Optional: build-in air compressor | |
| Electric power |
220V/1ph/50hz, 0.1kw |
| Drained water | 1/2” |
| Dimension | 1200x1200x1300mm |
| Safety | 3 levels |
| Net weight | 370kg |
| Package | Wooden case and plastic |
III. Feature detail
3.1 Scissors-type close & press
pressure 300kg
3.2 Metal buck is suitable for garment
(customizable)
3.3 Automatic LED controller (8 programs)
(set: close, press, steam, vacuum)
optional touch-screen PLC (16 programs)
3.4 (3) level safety protection device
3.5 Input & output signal
3,6 180mm length shock absorber
Optional air shock absorber system
3.7 Stainless steel board
Optional painted metal board
3.8 Steam heating system (top + bottom)
3.9 Top buck steam spray
(steam chamber supply much volume)
3.10 Bottom buck has vacuum
3.11 Famous pneumatic parts
3.12 suitable for: jacket suits uniform
3.13 ironing part: left back
3.14 optional buck with electric heating
IV. Full suits final press machine
| NO. | Model | Des.of machine | Dimension: mm |
| 1 | CYAJ-107 | Left front press | 1200x1200x1650 |
| 2 | CYAJ-108 | Right front press | 1200x1200x1650 |
| 3 | CYAJ-122 | Left back press | 1200x1200x1650 |
| 4 | CYAJ-123 | Right back press | 1200x1200x1650 |
| 5 | CYAJ-126 | Double lapel | 900x1200x1650 |
| 6 | CYEJ-116.117 | Double shoulder | 1000x1000x2150 |
| 7 | CYGJ-547 | Collar master | 1100x1100x2150 |
| 8 | CZBJ-104 | Sleeve front | 900x1200x1300 |
| 9 | CZBJ-105 | Sleeve elbow | 900x1200x1300 |
| 10 | CZBJ-114 | Sleeve arm-hole | 900x1200x1300 |
| 11 | CZBJ-114-14 | Sleeve blocking | 900x1200x1300 |
V. Production range of machinery:
Any customer could find his satisfied machinery and acceptable price for economical class or high class.
Jiejia could supply with full solution for all kinds of garment ironing purpose like: suits, pant, shirt, T-shirt, sweater, coat and so on.
VI. Q&A
| 1.Q | How could I get more information |
| A | Please contact with our E-mail or local agent. |
| 2.Q | Do you have another type of machine? |
| A | Yes. We have 3 different levels of machine for your reference |
| 3.Q | Do you have any customer factory to see? |
| A | Yes. Please contact with us to find close one for you. |
| 4.Q | Do you have machine video? |
| A | Yes. Please contact with us. |
| 5.Q | Are you factory? |
| A | Yes. We started to manufacture on 1995 |
| 6.Q | Our garment is export to different countries. Do you have suitable buck? |
| A | Yes. We have different types of buck series for your reference. |
| 7.Q | Our factory production is not much, could I have some suggestion? |
| A | Yes. We have double buck machine for small production factory. |
| 8.Q | Do you have English manual and installation instruction? |
| A | Yes. We have all. |
| 9.Q | Could you supply OEM product? |
| A | Yes. We are supplying OEM machine for Italy, English, American customer surely |
| 10.Q | Could you supply with demo machine? |
| A | We could supply with demo machine with some cost at low level |
Machine's picture
factory photo
