LED PLC Commercial Laundry Press Double Lapel Suit Ironing Press Machine 1.5kw

Certification
China shanghai jiejia garment machinery co .,ltd certification
China shanghai jiejia garment machinery co .,ltd certification
I'm Online Chat Now

LED PLC Commercial Laundry Press Double Lapel Suit Ironing Press Machine 1.5kw

LED PLC Commercial Laundry Press Double Lapel Suit Ironing Press Machine 1.5kw
LED PLC Commercial Laundry Press Double Lapel Suit Ironing Press Machine 1.5kw LED PLC Commercial Laundry Press Double Lapel Suit Ironing Press Machine 1.5kw LED PLC Commercial Laundry Press Double Lapel Suit Ironing Press Machine 1.5kw LED PLC Commercial Laundry Press Double Lapel Suit Ironing Press Machine 1.5kw LED PLC Commercial Laundry Press Double Lapel Suit Ironing Press Machine 1.5kw LED PLC Commercial Laundry Press Double Lapel Suit Ironing Press Machine 1.5kw

Large Image :  LED PLC Commercial Laundry Press Double Lapel Suit Ironing Press Machine 1.5kw

Product Details:
Place of Origin: Shanghai China
Brand Name: JIEJIABAIGU
Certification: ISO9001:2015
Model Number: CZBJ
Payment & Shipping Terms:
Minimum Order Quantity: 2 SETS
Price: price is negotiable
Packaging Details: wooden case
Delivery Time: 7-15 works day
Supply Ability: 40 units per month

LED PLC Commercial Laundry Press Double Lapel Suit Ironing Press Machine 1.5kw

Description
Control: LED PLC / Touch-sreen PLC /manual Press: Scissors Close Press
Heat: Steam Chamber Drive: Compressed Air
Buck: Double Lapel Steam Spray: Italy Made Valve
Suction: Build-in Suction Unit Suitable For: Man Lady Suit Jacket Blazer Dress
Iron Part: Double Lapel Pressure: 300kg
High Light:

1.5kw Automatic Cloth Ironing Machine

,

LED PLC Commercial Steam Press

,

Double Lapel Suit Ironing Press Machine

Auto-PLC laundry press machine commercial laundry press machine Laundry press





I. Factory

The company established a production base in Shanghai in 1998, with more than 22 years of clothing ironing equipment design, research and development, production experience





Our company has passed is090001-2015 quality system certification.

There are 5 main departments, such as technology development department, product design department, product sales department, accounting department and production management department. The main products include: 1 - suit ironing machine 2 - shirt ironing machine 3 - trousers ironing machine.



II. Automatic CZBJ series press machine (legger)

Model CZBJ-102
Control Automatic LED PLC (8 programs)
  Optional: touch-screen PLC (16 programs)
Buck name double lapel
Buck material metal
Total pressure 2,600kg
Heat method Steam chamber
  Optional electric heating
Steam spray Top buck, bottom buck, or both
Vacuum Bottom buck, top buck, or both
  Standard: 2” vacuum pipe system
  Optional 1: 1.5kw 220V build-in vacuum pump
  Optional 2: 0.75kw 380V build-in vacuum pump
Steam 0.4-0.6MPa (18kg/h) / (15kg/h)
  Standard: 1/2” pipe
  Optional: build-in steam boiler 12kw 380V
  Italy steam spray valve
Compress air 0.4-0.6MPa (15L/min)
  Standard: 8mm pipe
  Optional: build-in air compressor 1.5kw 220V
Electric power

220V/1ph/50hz, 0.1kw

220V/1ph/50hz, 1.6kw (with build-in vacuum pump)

380V/1PH/50hz, 0,85kw (with build-in vacuum pump)

Drained water 1/2”
Dimension 900x1200x1350mm
Safety 3 levels
Net weight 320kg
Package Wooden case



III. Feature

3.1 Scissors-type close & press

      pressure 300kg

3.2 Metal buck is suitable for garment

(customizable)

3.3 Automatic LED controller (8 programs)

(set: close, press, steam, vacuum)
optional touch-screen PLC (16 programs)

3.4 (3) level safety protection device

3.5 Input & output signal

(easy to check faulty)

3,6 180mm length shock absorber (long life)

Optional air shock absorber system

3.7 Stainless steel board

Optional painted metal board

3.8 Steam heating system (top + bottom)

3.9 Top buck steam spray

(steam chamber supply much volume)

3.10 Bottom buck has vacuum

3.11 Famous pneumatic parts

3.12 suitable for: suits / jacket / uniform / lady and man

3.13 ironing part: double lapel

3.14 optional buck with electric heating

Top buck with electric heating

bottom buck with electric heating

Or both



IV. Full pant trousers press machine



NO. Model Description of machine Dimension: L x W x H mm
1 CZBJ-136 Pocket press 900x1200x1300
2 CZBJ-137 Seat seam press 900x1200x1300
3 CZAJ-666 Legger stretch press 1200x1200x1350
4 CZBJ-119 Side seam press 1200x1200x1300
  CZAJ-119 --Dual cylinder 1200x1200x1300
5 CZBJ-102 Waist press 900x1200x1300
  CZAJ-102 --Dual cylinder 900x1200x1350
  CZAJ-102R --Dual cylinder & electric heat 900x1200x1350
6 CZBJ-101 Legger press 1200x1200x1300
7 CZAJ-101 --Dual cylinder 1200x1200x1350
8 CZAJ-101R --Dual cylinder & electric heat 1200x1200x1350
9 CYAJ-101 --vertical press 1200x1200x1650
10 CYAJ-101S Double legger press 3000x1600x1350





Full suits final press machine



NO. Model Des.of machine Dimension: mm
1 CYAJ-107 Left front press 1200x1200x1650
2 CYAJ-108 Right front press 1200x1200x1650
3 CYAJ-122 Left back press 1200x1200x1650
4 CYAJ-123 Right back press 1200x1200x1650
5 CYAJ-126 Double lapel 900x1200x1650
6 CYEJ-116.117 Double shoulder 1000x1000x2150
7 CYGJ-547 Collar master 1100x1100x2150
8 CZBJ-104 Sleeve front 900x1200x1300
9 CZBJ-105 Sleeve elbow 900x1200x1300
10 CZBJ-114 Sleeve arm-hole 900x1200x1300
11 CZBJ-114-14 Sleeve blocking 900x1200x1300



V. Production range of machinery:



  1. Fabric shrink / inspect / fuse machinery
  2. Suits pressing machinery
  3. Pant machinery
  4. Shirt machinery
  5. Jeans machinery
  6. T-shirt / Sweater pressing machine
  7. Non-sewing seam seal press



Any customer could find his satisfied machinery and acceptable price for economical class or high class.



Jiejia could supply with full solution for all kinds of garment ironing purpose like: suits, pant, shirt, T-shirt, sweater, coat and so on.



VI. Q & A



1.Q How could I get more information
A Please contact with our E-mail or local agent.
2.Q Do you have another type of machine?
A Yes. We have 3 different levels of machine for your reference
3.Q Do you have any customer factory to see?
A Yes. Please contact with us to find close one for you.
4.Q Do you have machine video?
A Yes. Please contact with us.
5.Q Are you factory?
A Yes. We started to manufacture on 1995
6.Q Our garment is export to different countries. Do you have suitable buck?
A Yes. We have different types of buck series for your reference.
7.Q Our factory production is not much, could I have some suggestion?
A Yes. We have double buck machine for small production factory.
8.Q Do you have English manual and installation instruction?
A Yes. We have all.
9.Q Could you supply OEM product?
A Yes. We are supplying OEM machine for Italy, English, American customer.
10.Q Could you supply with demo machine?
A We could supply with demo machine with some cost.

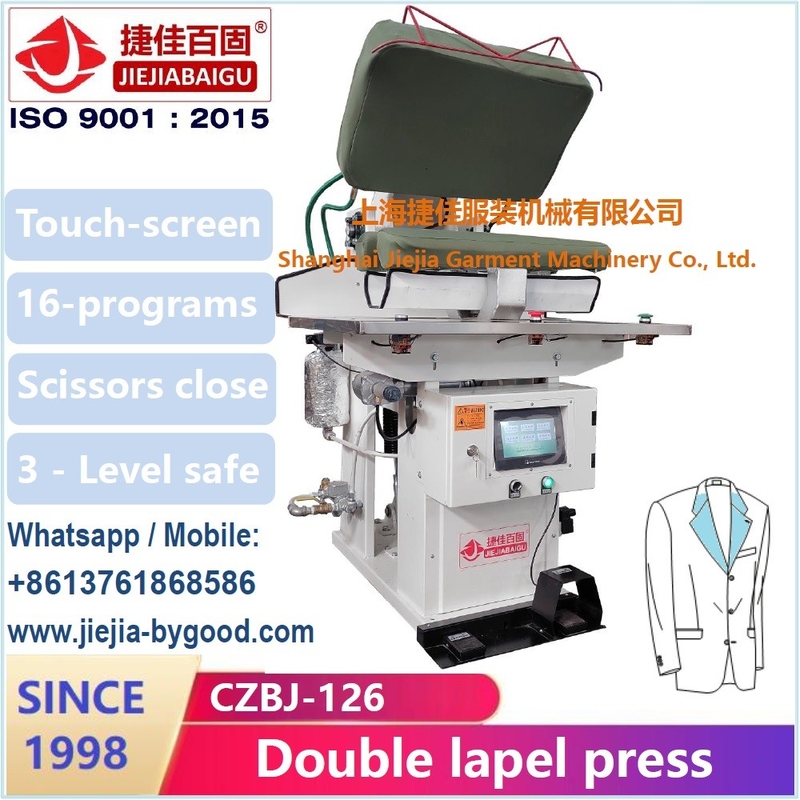

 Machine's picture

LED PLC Commercial Laundry Press Double Lapel Suit Ironing Press Machine 1.5kw 0



LED PLC Commercial Laundry Press Double Lapel Suit Ironing Press Machine 1.5kw 1

LED PLC Commercial Laundry Press Double Lapel Suit Ironing Press Machine 1.5kw 2



LED PLC Commercial Laundry Press Double Lapel Suit Ironing Press Machine 1.5kw 3

LED PLC Commercial Laundry Press Double Lapel Suit Ironing Press Machine 1.5kw 4



LED PLC Commercial Laundry Press Double Lapel Suit Ironing Press Machine 1.5kw 5LED PLC Commercial Laundry Press Double Lapel Suit Ironing Press Machine 1.5kw 6



factory photo

LED PLC Commercial Laundry Press Double Lapel Suit Ironing Press Machine 1.5kw 7  LED PLC Commercial Laundry Press Double Lapel Suit Ironing Press Machine 1.5kw 8



LED PLC Commercial Laundry Press Double Lapel Suit Ironing Press Machine 1.5kw 9  LED PLC Commercial Laundry Press Double Lapel Suit Ironing Press Machine 1.5kw 10



LED PLC Commercial Laundry Press Double Lapel Suit Ironing Press Machine 1.5kw 11  LED PLC Commercial Laundry Press Double Lapel Suit Ironing Press Machine 1.5kw 12
