Automatic Steam Commercial Laundry Press Machine Universal Type For Clothes

Automatic Steam Commercial Laundry Press Machine Universal Type For Clothes
Automatic Steam Commercial Laundry Press Machine Universal Type For Clothes
Automatic Steam Commercial Laundry Press Machine Universal Type For Clothes Automatic Steam Commercial Laundry Press Machine Universal Type For Clothes

Large Image :  Automatic Steam Commercial Laundry Press Machine Universal Type For Clothes

Product Details:
Place of Origin: Shanghai China
Brand Name: JIEJIABAIGU
Certification: ISO9001:2015
Model Number: CZBJ
Payment & Shipping Terms:
Minimum Order Quantity: 2 SETS
Price: price is negotiable
Packaging Details: wooden case
Delivery Time: 7-15 works day
Supply Ability: 40 units per month

Automatic Steam Commercial Laundry Press Machine Universal Type For Clothes

Description
Product Name: Commercial Laundry Press Machine Control: Automatic Touch-sreen PLC /manual
Press: Scissors Close Press Heat: Steam Chamber
Drive: Compressed Air Buck: Universal Type
Steam Spray: Italy Made Valve Suction: Build-in Suction Unit
Suitable For: Dry Clean Press Vacuum: 1.5kw / 0.75 Build-in Vacuum Unit
High Light:

Universal Type Commercial Laundry Press Machine

,

Commercial Laundry Press Machine 220V

,

PLC Automatic Steam Press Clothes Machine

Automatic Steam Commercial Laundry Press Machine For Clothes



1. Instructions of Laundry Press Machine :

Laundry Press Machine is used to press any part of dry clean jacket blazer suit.

They are designed for different kind of fabric with unersal buck.

Laundry Press Machine can be applied to sizing and steam - plating processing of some parts of clothes made of wool, synthetic fiber and cotton etc. such as trouser legs and wanst of trousers. It is easy to maintain and repair. Suitable for small and mediun-sized clothing factories.



2. Machine perameter of CYAJ-122.123:

Model CYAJ-122.123 Laundry Press Machine (double front l press)
Control Automatic touch-screen PLC / LED PLC
Total pressure 750kg
Steam 0.4-0.6MPa (18kg/h) 1/2”
Compress air 0.4-0.6MPa (15L/min) 8mm
Electric power 220V/1ph/50HZ / 380V/3ph/50hz
Vacuum 1.5kw / 0.75 build-in vacuum unit
Drained water 1/2”
press type dry press
Stem spray Italy made valve
Dimension 1750x1200x1300mm
Net weight 370kg



3. Machine's advantage

3.1 ) Scissors press: simple movement and more stability

3.2 ) Manual control / LED PLD / Touch-screen PLC with more function

3 level safety protection design
buck gap is able to set between 0-50mm in PLC

3.3 ) Advanced 180mm length shock absorber (long life use)

3.4 ) with different buck design and sizes

3.5 ) top buck and bottom buck with steam heating chamber

3.6 ) Top steam spray by Italy made valve (steam: dry & huge valume)

3.7 ) Steam spray: bottom

3.8 ) Vacuum: bottom

3.9 ) top buck with extra heating pipe



4. Machine's application

4.1 ) High class wool jacket blazer front suit final press

4.2 ) Dark color light fabric jacket blazer font suit final press

4.3 ) classical jacket blazer font suit final press

4.4 ) formal jacket blazer font suit final press

4.5 ) Available to press any special parts of cloth, sunch as for pressing pants leg and plat top .
4.6 ) With strong vacuum moisture removing system.
4.7 ) Can press cloth dehydrated.
4.8 ) Using high-quality pneumatic components and with reasonable designed steam circuit.Controlled by compressed air.
4.9 ) Steam circuit is very simple and efficient. Temperature rises fast and with low heat ullage.

4.10 ) Euipmented with hand and leg operation press.The sunction and steaming function are controlled by foot press.

4.11) Top press unit is made of aluminum casting which is light to handel ;

4.12) Felixble hose with metal reinforcement of its wall

4.13) Non-oiling ball bearing





5. Full final suit press machine



NO. Model Description of machine Dimension: L x W x H mm
1 CZBJ-137 Seat seam 900x1200x1300
2 CZCJ-136 Pocket 900x900x1650
3 CZAJ-666 Legger stretch 1200x1200x1350
4 CZAJ-119 High pressure side seam 1200x1200x1350
5 CZBJ-119 Side seam 1200x1200x1300
6 CZBJ-102 Topper 900x1200x1300
7 CZAJ-102 High pressure topper 900x1200x1350
8 CZAJ-102R Electric-heat high pressure topper 900x1200x1350
9 CZBJ-101 Legger 1200x1200x1300
10 CZAJ-101 High pressure legger 1200x1200x1350
11 CZAJ-101R Electric-heat high pressure legger 1200x1200x1350
12 CYAJ-101 Vertical press legger 1200x1200x1650
13 CYAJ-101S Vertical press double legger 3000x1600x1650
14 VTH-288A Pant blowing machine / dummy 500x1200x2000



5 series of main product:



  1. Fabric shrink / inspect / fuse machinery
  2. Suits pressing machinery
  3. Pant machinery
  4. Shirt machinery
  5. Jeans machinery
  6. Knitting machinery



Any customer could find his satisfied machinery and acceptable price for economical class or high class.



Jiejia could supply with full solution for all kinds of garment ironing purpose like: suits, pant, shirt, T-shirt, sweater, coat and so on.



V. Q&A

1. Do you have another type of machine ?
Yes. we have 3 different levels of machine for your reference

2. Do you have any customer factory to see?
Yes. please contect with us to find close one for you.

3. Do you have machine video?

Yes. please contact with us.

4. Are you factory?

Yes. We have manufactured for over 20 years.





=========================================

Auto press machine for suit jacket uniform interlining steam ironing equipment with vacuum suction

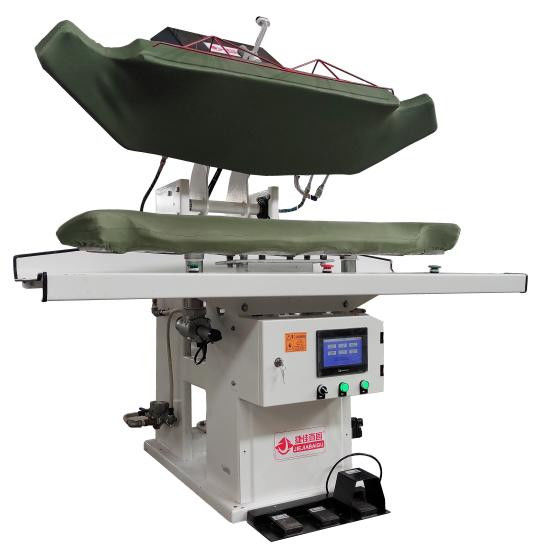

Machine's picture



Automatic Steam Commercial Laundry Press Machine Universal Type For Clothes 0



Automatic Steam Commercial Laundry Press Machine Universal Type For Clothes 1

Automatic Steam Commercial Laundry Press Machine Universal Type For Clothes 2

Automatic Steam Commercial Laundry Press Machine Universal Type For Clothes 3Automatic Steam Commercial Laundry Press Machine Universal Type For Clothes 4Automatic Steam Commercial Laundry Press Machine Universal Type For Clothes 5Automatic Steam Commercial Laundry Press Machine Universal Type For Clothes 6Automatic Steam Commercial Laundry Press Machine Universal Type For Clothes 7
