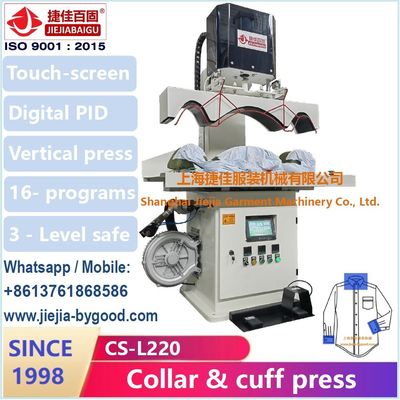

High Pressure Electric Heat Wrinkle Free Pressing Machine For Shirt Collar / Cuff

High Pressure Electric Heat Wrinkle Free Pressing Machine For Shirt Collar / Cuff
High Pressure Electric Heat Wrinkle Free Pressing Machine For Shirt Collar / Cuff
High Pressure Electric Heat Wrinkle Free Pressing Machine For Shirt Collar / Cuff High Pressure Electric Heat Wrinkle Free Pressing Machine For Shirt Collar / Cuff High Pressure Electric Heat Wrinkle Free Pressing Machine For Shirt Collar / Cuff High Pressure Electric Heat Wrinkle Free Pressing Machine For Shirt Collar / Cuff High Pressure Electric Heat Wrinkle Free Pressing Machine For Shirt Collar / Cuff High Pressure Electric Heat Wrinkle Free Pressing Machine For Shirt Collar / Cuff

Large Image :  High Pressure Electric Heat Wrinkle Free Pressing Machine For Shirt Collar / Cuff

Product Details:
Place of Origin: CHINA, SHANGHAI
Brand Name: JIEJIABAIGU
Certification: ISO9001:2015
Model Number: CS-L220
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: price is negotiable
Packaging Details: wooden case
Delivery Time: 7-15 works day

High Pressure Electric Heat Wrinkle Free Pressing Machine For Shirt Collar / Cuff

Description
Buck Move: CYLINDER Press: Vertical Supper High Pressure
Heat: Electric Cool: Suction / Vacuum
Vacuum: Build-in 1.5kw Buck Size: Aluminium 3 Bars
Safety: 3 Level Design Buck Number: 3 Bucks
High Light:

Shirt Collar Wrinkle Free Pressing Machine

,

1.5kw Shirt Pressing Machine

,

High Pressure Seam Pressing Machine

High Pressure electric heat Shirt collar & cuff wrinkle free Pressing Machine



1. Instructions of CS-L220:



Professional Universal Laundry Press Machine
1, Available to press any special parts of cloth.
2, With strong vacuum moisture removing system.
3, Can press cloth dehydrated.
4, Using high-quality pneumatic components and with reasonable designed steam circuit. Controlled by compressed air.
5, Steam circuit is very simple and efficient. Temperature rises fast and with low heat ullage...



CS-800 is used to fuse and press front placket, cuff, collar of shirt line press.

It has high pressure, temperature setting and water cool system for different requirement shirt.



2.

Automatic shirt arm-hole seam press machine

Model CS-L220
Control Automatic touch-screen PLC
Total pressure 750kg
Buck heat Electric heat
Compress air 0.4-0.6MPa (15L/min) 8mm
Electric power 220V/1ph/50HZ
Vacuum 1.5kw extra vacuum pump 2”
Max temperature 195︒C
Dimension 1200x1200x1650mm
Net weight 420kg





III. Machine's advantage

Vertical press

(All buck surface press at same time)

Metal buck is suitable for garment

Automatic Touch-screen controller (8 programs)

(set: close, press, steam, vacuum)

3 level safety protection device

Stainless steel board

Steam heating system

Top buck electric heat & Teflon cover

Digital temperature controller

Bottom buck has vacuum

Famous pneumatic parts







IV. Full final shirt press machine

Collar & cuff press

Side seam press

Shoulder seam & back seam press

Front placket press

Bottom seam press

Body & sleeve press

Folding table



Shanghai Jiejia Garment Machinery Co., Ltd. was registered in 1998. Over 20 years we developed 5 series of main product:



  1. Fabric shrink / inspect / fuse machinery
  2. Suits pressing machinery
  3. Pant machinery
  4. Shirt machinery
  5. Jeans machinery



Any customer could find his satisfied machinery and acceptable price for economical class or high class.



Jiejia could supply with full solution for all kinds of garment ironing purpose like: suits, pant, shirt, T-shirt, sweater, coat and so on.



Shanghai Jiejia Garment Machinery Co., Ltd. was registered in 1998. Over 20 years we developed 5 series of main product:



  1. Fabric shrink / inspect / fuse machinery
  2. Suits pressing machinery
  3. Pant machinery
  4. Shirt machinery
  5. Jeans machinery
  6. Knitting machinery



Any customer could find his satisfied machinery and acceptable price for economical class or high class.



Jiejia could supply with full solution for all kinds of garment ironing purpose like: suits, pant, shirt, T-shirt, sweater, coat and so on.



V. Q&A

1. Do you have another type of machine ?
Yes. we have 3 different levels of machine for your reference

2. Do you have any customer factory to see?
Yes. please contect with us to find close one for you.

3. Do you have machine video?

Yes. please contact with us.

4. Are you factory?

Yes. We have manufactured for over 20 years.





=========================================

Auto press machine for suit jacket uniform interlining steam ironing equipment with vacuum suction





6.Machine list of Shirt in line press

NO. Model Description of machine
1 CS-L110 Shirt collar collar trim, turn & blocking machine
2 CS-X114 Shirt cuff turn & blocking machine
3 CS-L110D 3-point marking machine
4 CS-700 4 position cuff turn & blocking machine
5 CS-X2410 Shirt sleeve placket folding machine
6 CS-X902 Strip & check matching sleeve placket folding machine
7 CS-L112 Shirt collar bottom cutting machine



7. Question & Answer



1.Q

How could I get more information about your equipment & factory
A Please contact with our E-mail or local agent.
2.Q Do you have another type of equipment?
A Yes. We have 3 different levels of equipment for your reference
3.Q Do you have any customer factory to see?
A Yes. Please contact with us to find close one for you.
4.Q Do you have machine video?
A Yes. Please contact with us.
5.Q Are you factory?
A Yes. We started to manufacture on 1995
6.Q Our garment is export to different countries. Do you have suitable buck?
A Yes. We have different types of buck series for your reference.
7.Q Our factory production is not much, could I have some suggestion?
A Yes. We have double buck machine for small production factory.
8.Q Do you have English manual and installation instruction?
A Yes. We have all.
9.Q Could you supply OEM product?
A Yes. We are supplying OEM equipment for Italy, English, American customer.
10.Q Could you supply with demo equipment e?
  We could supply with demo equipment with some cost.
