Laundry Pant Trousers Legger Press Machine Vertical Press Automatic Touch-screen Control System

Product Details

Place of Origin: Shanghai China

Brand Name: JIEJIABAIGU

Certification: ISO9001:2015

Model Number: CYAJ-101

Payment & Shipping Terms

Minimum Order Quantity: 2 SETS

Price: price is negotiable

Packaging Details: wooden case

Delivery Time: 7-15 works day

Supply Ability: 40 units per month

Get Best Price
Contact Now
Specifications
Highlight:

Vertical Laundry Press

,

Automatic Touch Screen Laundry Press

,

Legger Laundry Press

Control:
LED PLC / Touch-sreen PLC
Press:
Vertical Press 750kg
Heat:
Steam Champer
Drive:
Compressed Air / Cylinder
Vacuum:
Build-in / Vacuum Pipe System Option
Frame:
Top Frame
Steam Spray:
Big Volume Valve & Adjustable
Buck:
Single Legger
Control:
LED PLC / Touch-sreen PLC
Press:
Vertical Press 750kg
Heat:
Steam Champer
Drive:
Compressed Air / Cylinder
Vacuum:
Build-in / Vacuum Pipe System Option
Frame:
Top Frame
Steam Spray:
Big Volume Valve & Adjustable
Buck:
Single Legger
Description
Laundry Pant Trousers Legger Press Machine Vertical Press Automatic Touch-screen Control System

Laundry pant trousers legger press machine vertical press automatic touch-screen control system



Shanghai Jiejia Garment Machinery Co., Ltd. was registered in 1998. Over 20 years we developed 5 series of main product:



  1. Fabric shrink / inspect / fuse machinery
  2. Suits pressing machinery
  3. Pant machinery
  4. Shirt machinery
  5. Jeans machinery
  6. Knitting machinery

 Machine's application

4.1 >High class wool trousers pant legger press in pant final press line

4.2 >Dark color light fabric pant final press

4.3 >classical jacket blazer back pant final press

4.4 >formal jacket blazer back pant final press





Factory

Factory since: 1998

Full range of garment ironing equipment

Reliable equipment quality

Delivery in time



I. Instructions:

CYAJ-101 is used to press pant trouser legger in pant final press line.

They are designed for different kind of fabric with many different functions





II. Automatic Pant press machine (legger)

Model CYAJ-101
Control Automatic LED PLC / touch-screen PLC
Total pressure 750kg
Steam 0.4-0.6MPa (18kg/h) 1/2” inlet
Compress air 0.4-0.6MPa (25L/min) 8mm pipe
Electric power 220V/1ph/50HZ 80W
Vacuum

1.5kw extra vacuum pump 2”

build-in unit: 0.75kw

Drained water 1/2”
Dimension 1200x1200x1650mm
Net weight 470kg







III. Feature

Scissors-type close & vertical press

Dual cylinder: close + press

Max pressure: 750kg

Metal buck is suitable for pant trousers legger

(customizable)

Automatic LED  PLC / Touch-screen PLC

3 level safety protection device design

180mm length shock absorber (long life)

with stretch frame & covering knitting fabric

   anti-shining

Steam heating system

Top buck steam spray

(steam chamber supply much volume)

Japan original design steam valve

Bottom buck has vacuum

Famous pneumatic parts



IV. Full pant press machine



NO. Model Description of machine Dimension: L x W x H mm
1 CZBJ-137 Seat seam open 900x1200x1300
2 CZCJ-136 Pocket 900x900x1650
3 CZAJ-666 Legger stretch 1200x1200x1350
4 CZAJ-119 High pressure side seam open 1200x1200x1350
5 CZBJ-119 Side seam open 1200x1200x1300

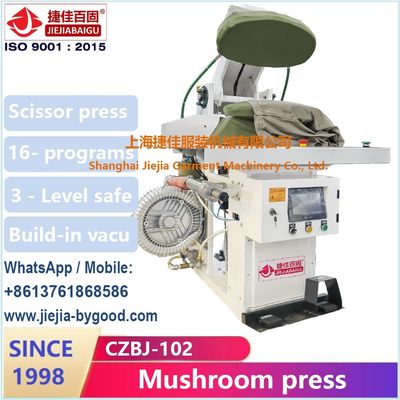

6 CZBJ-102 Topper 900x1200x1300
7 CZAJ-102 High pressure topper 900x1200x1350
8 CZAJ-102R Electric-heat high pressure topper 900x1200x1350
9 CZBJ-101 Legger 1200x1200x1300
10 CZAJ-101 High pressure legger 1200x1200x1350
11 CZAJ-101R Electric-heat high pressure legger 1200x1200x1350
12 CYAJ-101 Vertical press legger 1200x1200x1650
13 CYAJ-101S Vertical press double legger 3000x1600x1650
14 VTH-288A Pant blowing machine / dummy 500x1200x2000





1.Q

How could I get more information

   A

Please contact with our E-mail or local agent.

2.Q

Do you have another type of machine?

   A

Sure. We have 3 different levels of machine for your reference

3.Q

Do you have any customer factory to see?

   A

Sure. Please contact with us to find close one for you.

4.Q

Do you have machine video?

   A

Sure. Please contact with us.

5.Q

Are you factory?

   A

Sure. We started to manufacture on 1995

6.Q

Our garment is export to different countries. Do you have suitable buck?

   A

Sure. We have different types of buck series for your reference.

7.Q

Our factory production is not much, could I have some suggestion?

   A

Sure. We have double buck machine for small production factory.

8.Q

Do you have English manual and installation instruction?

   A

Sure s. We have all.

9.Q

Could you supply OEM product?

   A

Sure. We are supplying OEM machine for Italy, English, American customer.

10.Q

Could you supply with demo machine?



We could supply with demo machine with some cost.
