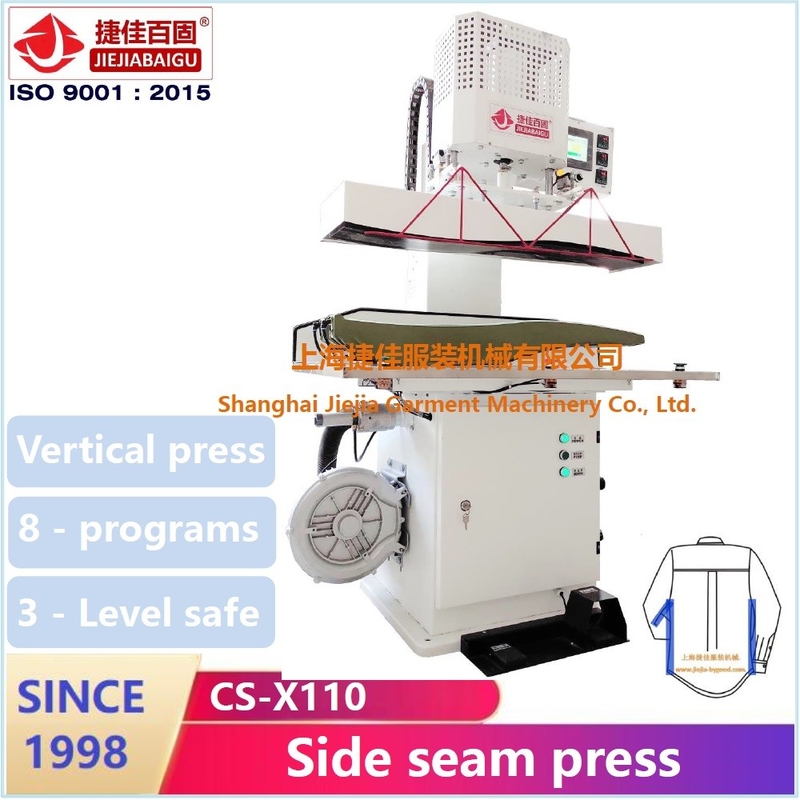

Vertical Shirt Pressing Machine 220V for sleeve body side seam sealing press

Certification
China shanghai jiejia garment machinery co .,ltd certification
China shanghai jiejia garment machinery co .,ltd certification
I'm Online Chat Now

Vertical Shirt Pressing Machine 220V for sleeve body side seam sealing press

Vertical Shirt Pressing Machine 220V for sleeve body side seam sealing press
Vertical Shirt Pressing Machine 220V for sleeve body side seam sealing press
Vertical Shirt Pressing Machine 220V for sleeve body side seam sealing press Vertical Shirt Pressing Machine 220V for sleeve body side seam sealing press

Large Image :  Vertical Shirt Pressing Machine 220V for sleeve body side seam sealing press

Product Details:
Place of Origin: CHINA, SHANGHAI
Brand Name: JIEJIABAIGU
Certification: ISO9001:2015
Model Number: CS-X110
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: price is negotiable
Packaging Details: wooden case
Delivery Time: 7-15 works day

Vertical Shirt Pressing Machine 220V for sleeve body side seam sealing press

Description
Buck Move: Automatic Press: Vertical Supper High Pressure
Heat: Electric Cool: Water Cool Chiller
Vacuum: Build-in 1.5kw Buck Size: Aluminium Side Seam
Safety: 3 Level Design Buck Number: 3 Bucks
High Light:

Vertical Shirt Pressing Machine

,

0.6MPa Shirt Pressing Machine

,

380v steam press machine for clothes

Rotation rotary water cool fuse press machine high pressure shirt inline press

1. Instructions of CS:
CS is used to fuse and press front placket, cuff, collar of shirt line press.
It has high pressure, temperature setting and water cool system for different requirement shirt.


II. Automatic shirt side seam press machine

Model CS-X110
Control Automatic touch-screen PLC
Total pressure 750kg
Buck heat Electric heat
Compress air 0.4-0.6MPa (15L/min) 8mm
Electric power 220V/1ph/50HZ
Vacuum 1.5kw extra vacuum pump 2”
Max temperature 195︒C
Dimension 1200x1200x1650mm
Net weight 420kg


Vertical Shirt Pressing Machine 220V for sleeve body side seam sealing press 0
3. Machine's advantage

Vertical press

(All buck surface press at same time)

Metal buck is suitable for garment

Automatic Touch-screen controller (8 programs)

(set: close, press, steam, vacuum)

3 level safety protection device

Stainless steel board

Steam heating system

Top buck electric heat & Teflon cover

Digital temperature controller

Bottom buck has vacuum

Famous pneumatic parts
Vertical Shirt Pressing Machine 220V for sleeve body side seam sealing press 1

Vertical Shirt Pressing Machine 220V for sleeve body side seam sealing press 2


IV. Full final shirt press machine

Collar & cuff press

Side seam press

Shoulder seam & back seam press

Front placket press

Bottom seam press

Body & sleeve press

Folding table



Shanghai Jiejia Garment Machinery Co., Ltd. was registered in 1998. Over 20 years we developed 5 series of main product:



  1. Fabric shrink / inspect / fuse machinery
  2. Suits pressing machinery
  3. Pant machinery
  4. Shirt machinery
  5. Jeans machinery



Any customer could find his satisfied machinery and acceptable price for economical class or high class.



Jiejia could supply with full solution for all kinds of garment ironing purpose like: suits, pant, shirt, T-shirt, sweater, coat and so on.



Shanghai Jiejia Garment Machinery Co., Ltd. was registered in 1998. Over 20 years we developed 5 series of main product:



  1. Fabric shrink / inspect / fuse machinery
  2. Suits pressing machinery
  3. Pant machinery
  4. Shirt machinery
  5. Jeans machinery
  6. Knitting machinery



Any customer could find his satisfied machinery and acceptable price for economical class or high class.



Jiejia could supply with full solution for all kinds of garment ironing purpose like: suits, pant, shirt, T-shirt, sweater, coat and so on.




V.Machine list of Shirt in line press

NO. Model Description of machine
1 CS-L110 Shirt collar collar trim, turn & blocking machine
2 CS-X114 Shirt cuff turn & blocking machine
3 CS-L110D 3-point marking machine
4 CS-700 4 position cuff turn & blocking machine
5 CS-X2410 Shirt sleeve placket folding machine
6 CS-X902 Strip & check matching sleeve placket folding machine
7 CS-L112 Shirt collar bottom cutting machine


VI. Question & Answer



1.Q

How could I get more information about your equipment & factory
A Please contact with our E-mail or local agent.
2.Q Do you have another type of equipment?
A Yes. We have 3 different levels of equipment for your reference
3.Q Do you have any customer factory to see?
A Yes. Please contact with us to find close one for you.
4.Q Do you have machine video?
A Yes. Please contact with us.
5.Q Are you factory?
A Yes. We started to manufacture on 1995
6.Q Our garment is export to different countries. Do you have suitable buck?
A Yes. We have different types of buck series for your reference.
7.Q Our factory production is not much, could I have some suggestion?
A Yes. We have double buck machine for small production factory.
8.Q Do you have English manual and installation instruction?
A Yes. We have all.
9.Q Could you supply OEM product?
A Yes. We are supplying OEM equipment for Italy, English, American customer.
10.Q Could you supply with demo equipment e?
  We could supply with demo equipment with some cost.
