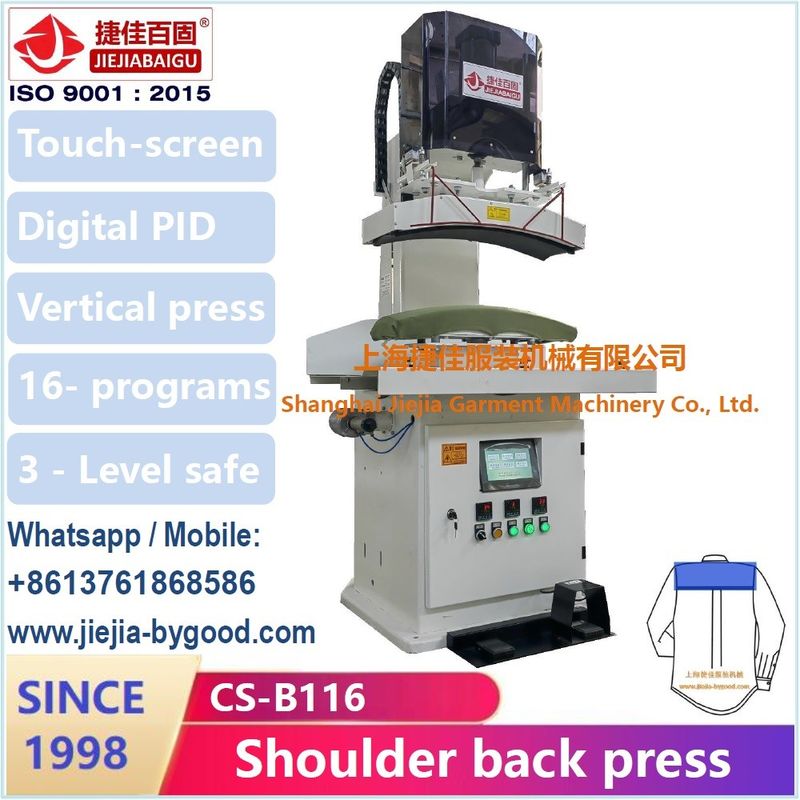

Automatic Touch Screen Shirt Shoulder Back Seam Press Machine (CS-B116)

Certification
China shanghai jiejia garment machinery co .,ltd certification
China shanghai jiejia garment machinery co .,ltd certification
I'm Online Chat Now

Automatic Touch Screen Shirt Shoulder Back Seam Press Machine (CS-B116)

Automatic Touch Screen Shirt Shoulder Back Seam Press Machine (CS-B116)
Automatic Touch Screen Shirt Shoulder Back Seam Press Machine (CS-B116)
Automatic Touch Screen Shirt Shoulder Back Seam Press Machine (CS-B116) Automatic Touch Screen Shirt Shoulder Back Seam Press Machine (CS-B116) Automatic Touch Screen Shirt Shoulder Back Seam Press Machine (CS-B116) Automatic Touch Screen Shirt Shoulder Back Seam Press Machine (CS-B116) Automatic Touch Screen Shirt Shoulder Back Seam Press Machine (CS-B116) Automatic Touch Screen Shirt Shoulder Back Seam Press Machine (CS-B116)

Large Image :  Automatic Touch Screen Shirt Shoulder Back Seam Press Machine (CS-B116)

Product Details:
Place of Origin: Shanghai China
Brand Name: JIEJIABAIGU
Certification: ISO9001:2015
Model Number: CS-B116
Payment & Shipping Terms:
Minimum Order Quantity: 2 SETS
Price: price is negotiable
Packaging Details: wooden case
Delivery Time: 7-15 works day
Supply Ability: 20 units per month

Automatic Touch Screen Shirt Shoulder Back Seam Press Machine (CS-B116)

Description
Control: Touch-sreen PLC Color 7" Press: Vertical
Heat: Electric Drive: Compressed Air / Cylinder
Electric Power: 220V/1ph/50HZ Certification: ISO9001:2015
High Light:

Shirt Shoulder Back Seam Press Machine

,

Automatic Touch Screen Shirt Pressing Machine

Touch screen suit dress press machine equipment vertical press lapel Shanghai Jiejiabaigu



I. Factory

Factory since: 1998

Full range of garment ironing equipment

Reliable equipment quality

Delivery in time



II.

Automatic shirt arm-hole seam press machine

Model CS-B116
Control Automatic touch-screen PLC
Total pressure 750kg
Buck heat Electric heat
Compress air 0.4-0.6MPa (15L/min) 8mm
Electric power 220V/1ph/50HZ
Vacuum 1.5kw extra vacuum pump 2”
Max temperature 195︒C
Dimension 900x1200x1650mm
Net weight 420kg





III. Feature

Vertical press

(All buck surface press at same time)

Metal buck is suitable for garment

Automatic Touch-screen controller (8 programs)

(set: close, press, steam, vacuum)

3 level safety protection device

Stainless steel board

Steam heating system

Top buck electric heat & Teflon cover

Digital temperature controller

Bottom buck has vacuum

Famous pneumatic parts







IV. Full final shirt press machine

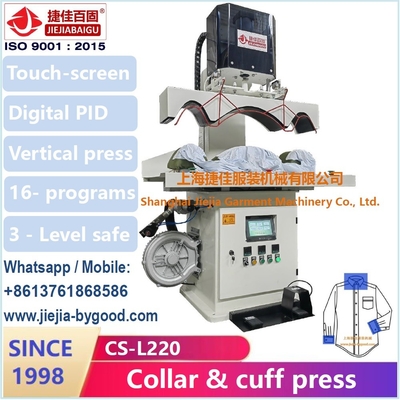

Collar & cuff press

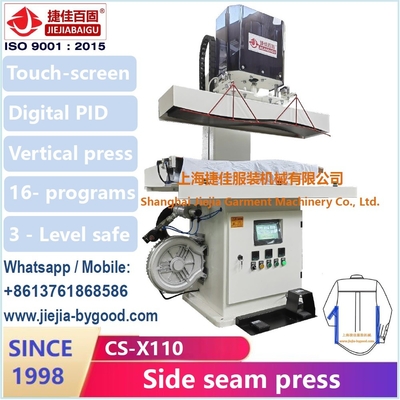

Side seam press

Shoulder seam & back seam press

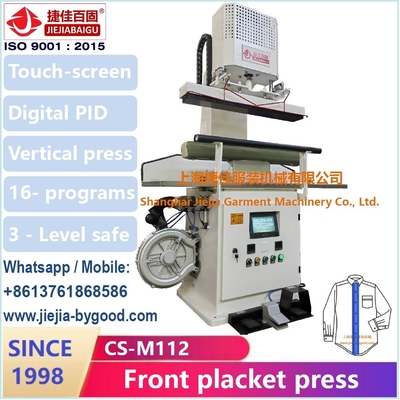

Front placket press

Bottom seam press

Body & sleeve press

Folding table



Shanghai Jiejia Garment Machinery Co., Ltd. was registered in 1998. Over 20 years we developed 5 series of main product:



  1. Fabric shrink / inspect / fuse machinery
  2. Suits pressing machinery
  3. Pant machinery
  4. Shirt machinery
  5. Jeans machinery



Any customer could find his satisfied machinery and acceptable price for economical class or high class.



Jiejia could supply with full solution for all kinds of garment ironing purpose like: suits, pant, shirt, T-shirt, sweater, coat and so on.



Shanghai Jiejia Garment Machinery Co., Ltd. was registered in 1998. Over 20 years we developed 5 series of main product:



  1. Fabric shrink / inspect / fuse machinery
  2. Suits pressing machinery
  3. Pant machinery
  4. Shirt machinery
  5. Jeans machinery
  6. Knitting machinery



Any customer could find his satisfied machinery and acceptable price for economical class or high class.



Jiejia could supply with full solution for all kinds of garment ironing purpose like: suits, pant, shirt, T-shirt, sweater, coat and so on.



V. Q&A

1. Do you have another type of machine ?
Yes. we have 3 different levels of machine for your reference

2. Do you have any customer factory to see?
Yes. please contect with us to find close one for you.

3. Do you have machine video?

Yes. please contact with us.

4. Are you factory?

Yes. We have manufactured for over 20 years.





=========================================

Auto press machine for suit jacket uniform interlining steam ironing equipment with vacuum suction
