Highlight:
High Pressure Shirt Ironing Machine
, Electric Vertical Shirt Pressing Machine
, Side Sleeve Seam Shirt Pressing Machine

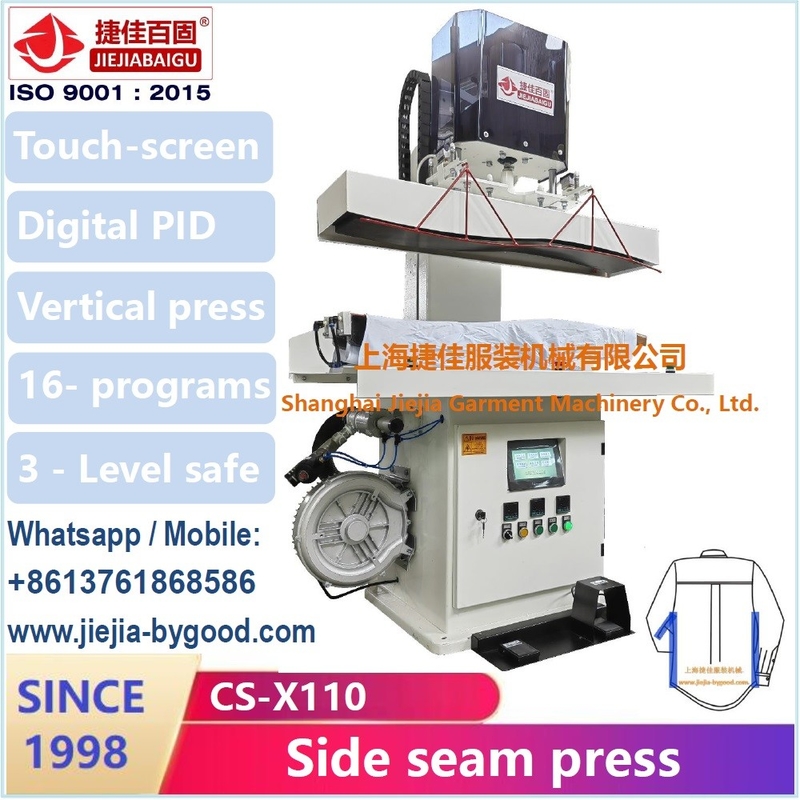

High Pressure Electric Vertical Shirt Pressing Machine For Side Sleeve Seam
Rotation rotary water cool fuse press machine high pressure shirt inline press
1. Instructions of CS:
CS is used to fuse and press front placket, cuff, collar of shirt line press.
It has high pressure, temperature setting and water cool system for different requirement shirt.
II. Automatic shirt side seam press machine
| Model |
CS-X110 |
| Control |
Automatic touch-screen PLC |
| Total pressure |
750kg |
| Buck heat |
Electric heat |
| Compress air |
0.4-0.6MPa (15L/min) 8mm |
| Electric power |
220V/1ph/50HZ |
| Vacuum |
1.5kw extra vacuum pump 2” |
| Max temperature |
195︒C |
| Dimension |
1200x1200x1650mm |
| Net weight |
420kg |
3. Machine's advantage
Vertical press
(All buck surface press at same time)
Metal buck is suitable for garment
Automatic Touch-screen controller (8 programs)
(set: close, press, steam, vacuum)
3 level safety protection device
Stainless steel board
Steam heating system
Top buck electric heat & Teflon cover
Digital temperature controller
Bottom buck has vacuum
Famous pneumatic parts
4. Full final shirt press machine
Collar & cuff press
Side seam press
Shoulder seam & back seam press
Front placket press
Bottom seam press
Body & sleeve press
Folding table
Shanghai Jiejia Garment Machinery Co., Ltd. was registered in 1998. Over 20 years we developed 5 series of main product:
- Fabric shrink / inspect / fuse machinery
- Suits pressing machinery
- Pant machinery
- Shirt machinery
- Jeans machinery
Any customer could find his satisfied machinery and acceptable price for economical class or high class.
Jiejia could supply with full solution for all kinds of garment ironing purpose like: suits, pant, shirt, T-shirt, sweater, coat and so on.
Shanghai Jiejia Garment Machinery Co., Ltd. was registered in 1998. Over 20 years we developed 5 series of main product:
- Fabric shrink / inspect / fuse machinery
- Suits pressing machinery
- Pant machinery
- Shirt machinery
- Jeans machinery
- Knitting machinery
Any customer could find his satisfied machinery and acceptable price for economical class or high class.
Jiejia could supply with full solution for all kinds of garment ironing purpose like: suits, pant, shirt, T-shirt, sweater, coat and so on.
5.Machine list of Shirt in line press
| NO. |
Model |
Description of machine |
| 1 |
CS-L110 |
Shirt collar collar trim, turn & blocking machine |
| 2 |
CS-X114 |
Shirt cuff turn & blocking machine |
| 3 |
CS-L110D |
3-point marking machine |
| 4 |
CS-700 |
4 position cuff turn & blocking machine |
| 5 |
CS-X2410 |
Shirt sleeve placket folding machine |
| 6 |
CS-X902 |
Strip & check matching sleeve placket folding machine |
| 7 |
CS-L112 |
Shirt collar bottom cutting machine |
6. Question & Answer
|
1.Q
|
How could I get more information about your equipment & factory |
| A |
Please contact with our E-mail or local agent. |
| 2.Q |
Do you have another type of equipment? |
| A |
Yes. We have 3 different levels of equipment for your reference |
| 3.Q |
Do you have any customer factory to see? |
| A |
Yes. Please contact with us to find close one for you. |
| 4.Q |
Do you have machine video? |
| A |
Yes. Please contact with us. |
| 5.Q |
Are you factory? |
| A |
Yes. We started to manufacture on 1995 |
| 6.Q |
Our garment is export to different countries. Do you have suitable buck? |
| A |
Yes. We have different types of buck series for your reference. |
| 7.Q |
Our factory production is not much, could I have some suggestion? |
| A |
Yes. We have double buck machine for small production factory. |
| 8.Q |
Do you have English manual and installation instruction? |
| A |
Yes. We have all. |
| 9.Q |
Could you supply OEM product? |
| A |
Yes. We are supplying OEM equipment for Italy, English, American customer. |
| 10.Q |
Could you supply with demo equipment e? |
| |
We could supply with demo equipment with some cost. |
